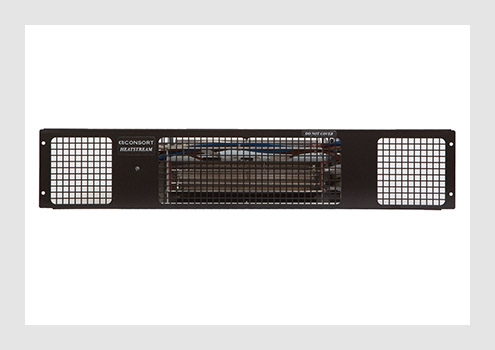

Plinth Heaters: Plinth Heaters – Wireless Control

Plinth heaters provide instant heat where space is at a premium and discreet yet effective heating is required. Cleverly concealed in the ‘kick space’ beneath counters, displays and kitchen units, stairwells and fitted furniture, these heaters are suitable for both commercial and domestic environments. They require a minimum kick space height of only 100mm thereby offering increased installation options.

  • 2kW or 3kW rating
  • All RX and SL heaters are compatible with advanced single zone controllers*
  • Run-back time controllers** are compatible with SL heaters only
  • Easy installation and maintenance
  • Fan only setting for air circulation in warm weather
  • Minimum kick space height of only 100mm
  • Automatic safety cut-out
  • LED indicator light
  • Fitted with 2.2m of supply cable
  • Four different finishes

* Advanced single zone controllers: CRXSL, SLTI and LC wireless controllers
** Run-back time control and thermostat: SLPB, SLVT, SLVTB, SLPIR and SLPBWP wireless controllers

All wireless controllers are to be purchased separately.

Dimensions & Specifications

  Types of Finish
Black Brown Stainless Steel White
Model No. 2kW PHSL2BL / PHRX2BL PHSL2B / PHRX2B PHSL2S / PHRX2S PHSL2W / PHRX2W
3kW PHSL3BL / PHRX3BL PHSL3B / PHRX3B PHSL3S / PHRX3S PHSL3W / PHRX3W

Dimensions (mm) & Weight (kg):

kW  Height Depth Width Weight dBA
2 100 180 500 2.2 40
3 100 180 600 2.5 40
