Run-back Time Control and Thermostat

Run-back time control and thermostat

This cost effective heating system is suitable for many commercial and domestic premises such as offices, student accommodation, hotels, modular buildings or homes.

Learn More

A quick feature guide on our run-back timers

Our run-back time control heating system is designed to be energy and cost efficient.

The SLPB, SLVT, SLVTB, SLPIR and SLPBWP single zone wireless controllers have a run-back timer function which allows a heating cycle to be operational only when the controller is activated. These controllers are easy to install and set up, and can operate multiple SL heaters including low surface temperature heaters. All controllers have easy-to-use control buttons except for the SLPIR.

This cost effective heating system is suitable for many commercial and domestic premises such as offices, student accommodation, hotels, modular buildings or homes.

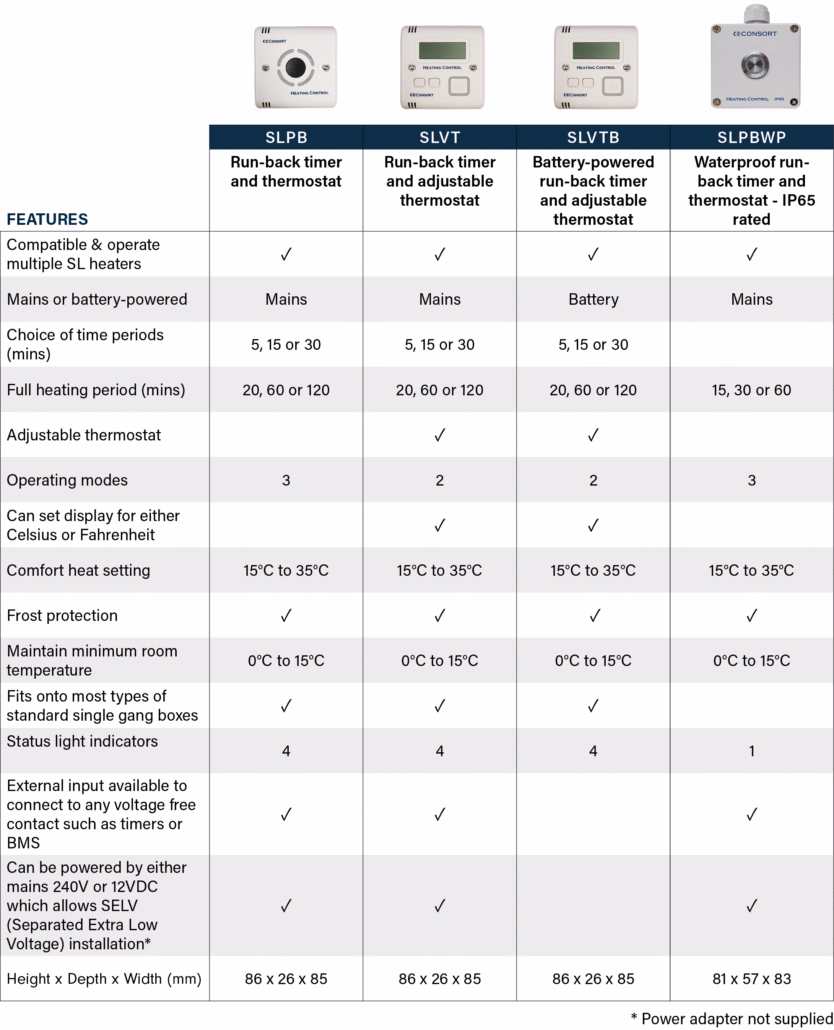

Run-back timers table

  • Comfort and setback temperatures

    All run-back timers have comfort and setback temperature settings.

  • 4-stage run-back timer vs full heating period

    A 4-stage run-back timer where a heating period remains active until the run-back timer expires with SLPB, SLVT & SLVTB. SLPIR and SLPBWP, however, will operate on the full heating period when the controllers are activated.

  • Adjustable thermostat with SLVT & SLVTB

    The SLVT & SLVTB controllers have variable comfort control for user to adjust the temperature below the maximum comfort temperature set by the building owners or operators.

  • Battery-powered with SLVTB

    The SLVTB uses two ‘AAA’ batteries.

  • Motion activated with SLPIR

    Increases comfort and convenience for its users as heating remains active as long as users move within the motion sensor range.

  • Waterproof controller with SLPBWP

    SLPBWP is a waterproof run-back timer which makes it ideal for outdoors, bathrooms and other wet areas.

Run-back timer for controlling energy costs

The 4-stage run-back timer function in the SLPB, SLVT and SLVTB controllers allows the heating to be active for a time period selected by users making it ideal for areas such as hotels or student accommodation.

Users can activate the heating using the pre-set time segments set by the building owners or operators. There is a choice of three time segments available: 5, 15 or 30 minutes. When the main control button is pressed four times, this takes the run-back time period to 20, 60 or 120 minutes.

  Button press x 1 Button press x 2 Button press x 3 Button press x 4
Time segments (minutes) Heating period (minutes) Heating period (minutes) Heating period (minutes) Heating period (minutes)
5 5 10 15 20
15 15 30 45 60
30 30 60 90 120

Below illustrates how the run-back timer works on our three controllers.

SLPB illustration

.

SLVT & SLVTB illustration

Motion-activated and waterproof run-back timers

The SLPIR and SLPBWP are the latest controllers in our run-back time control range. The SLPIR controller is a motion activated run-back timer which activates a full heating period when a movement is detected. It increases comfort and convenience for its users as heating remains active as long as users move within the motion sensor range.

The SLPBWP is a waterproof run-back timer. It is IP65 rated which makes it ideal for outdoors, bathrooms and other wet areas.

SLPIR controller

When a movement is detected, all the indicator segments will light up and heating is activated for a set period of time. If no movement is detected by a predetermined time, the heater is either switched off or the temperature can be held at a lower background level.

SLPIR Timer mode with time period segments:

  SLPIR detects movement
Time segments (minutes) Full heating period activated (minutes)
5 20
15 60
30 120
60 240

SLPBWP controller

The SLPBWP has a control button to activate a full heating period and heating remains active until the run-back timer expires.

SLPBWP Timer Mode with full heating periods:

 Button press x 1
Full heating period (minutes)
15
30
60

Below illustrates how the SLPIR and SLPBWP run-back timer work.

SLPIR illustration

.

SLPBWP illustration
