CA-HL Large Commercial Air Curtains

8/12kW, 12/18kW or 16/24kW rating, selectable at installation
Suspended mounting
Supplied with electronic controller (ACMC), external temperature sensor (ACTS) and 10m RJ45 cable
415 Volt 3 phase 50Hz
Fan only setting for air circulation
8 heat settings, 8 fan speeds with supplied ACMC
ACTS must be used in conjunction with ACMC

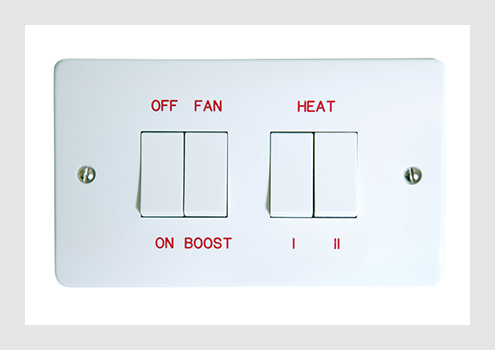

Optional simple mechanical remote switch HE8408 available
2 heat settings, 2 fan speeds with remote switch
Compatible with Building Management Systems via MODBUS Protocol
Multiple air curtains can be easily interconnected using CAT5/CAT6 RJ45 networking cable to resemble a continuous unit
External temperature sensor can be used indoors or outdoors which enables the electronic controller to optimise the fan speed and heat output to create an efficient optimal barrier and climate protection.
Safety monitoring feature: The feature will detect and display the nature of the fault on the display screen of ACMC controller. (If ACMC controller not used, the LED indicator light located under the heater cover will flash indicating the nature of the fault).
Electronic overheat and fault protection.
Visual fault indication
Easy maintenance
Automatic safety cut-out for thermal overload protection
Finished in white, grey or black

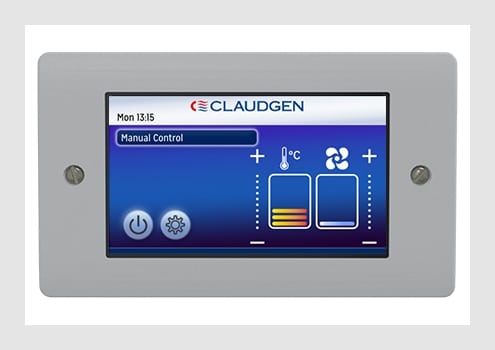

Electronic Controller
The electronic touchscreen controller provides easy usability and simple installation. It can operate in basic or advanced mode and provides many features such as multiple air curtains control and a 7-day timer. The controller also displays the temperature and fan speed for connected air curtains.
Major energy & cost savings
The electronic controller is able to provide an efficient climate control through clever regulation of fan speed and heat. This helps to prevent unnecessary energy usage and reduces heat loss around open doors. The low energy consumption of the EC fans installed in the air curtains also help with energy and cost savings.
Energy usage screen
The controller features an energy usage screen which shows energy consumption of all connected air curtains in the last day, week, month and year.

Adjustable Power Output
Users can select between standard or high power output for each model. This allows the user to select the correct kW rating for their application.
Suitable for wider doorways
Available in 1m, 1.5m and 2m lengths. Multiple air curtains can be easily interconnected using CAT5/CAT6 RJ45 networking cable to resemble a continuous unit.
Enhanced security
The controller can be security coded to prevent unauthorised access.

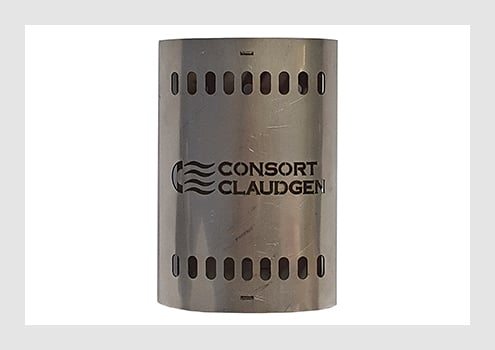

Temperature sensor
The external temperature sensor can be used indoors or outdoors which enables the electronic controller to optimise the fan speed and heat output to create an efficient optimal barrier and climate protection.

Simple installation:
No intermediary terminal blocks required, wiring is via plug and play cable and connectors are direct to the controller.
Electronic controller can control up to 7 air curtains with the same settings.
Easy-to-use interface and simple to set up.
4 different modes:
– Manual: User sets desired fan speed and heat settings.

– Automatic: User sets air curtain’s mounting height and the programme will automatically modify the ventilation and heating to provide high separation efficiency and optimum comfort.

– Constant Temperature: Maintains a constant outlet temperature whilst regulating the air curtain velocity to maintain the optimum level of air separation.

– Advanced Control: User sets a temperature range and the programme will automatically adjust heating as a higher target temperature is approached.

Enhanced security:
By setting a four-digit pin code, users can prevent unauthorised access to the controller.
Displays energy usage of all connected air curtains in the last day, week, month and year.
Heater status shows temperature and fan speed of connected air curtains.
7-day timer.

Dimensions & Specifications

Note: dBA readings are taken at 3 meters from the heater in a free field environment.

Dimensions:

Downloads

Large Commercial Air Curtains 8kW-24kW
