Controllers: MRX1 Multizone Wireless Controller

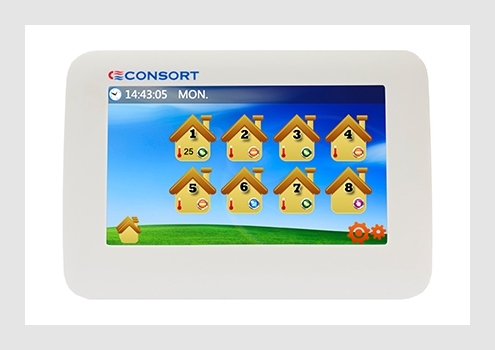

MRX1 Multizone wireless controller

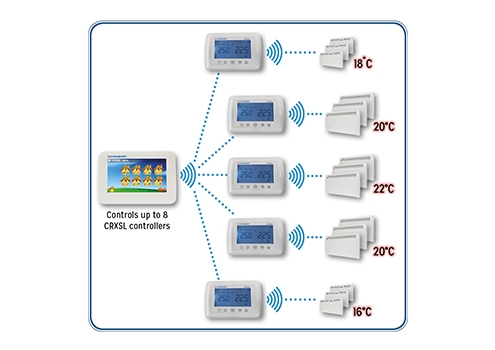

The MRX1 Multizone wireless controller is a central control unit that can separately control up to 8 heating zones using the existing CRXSL controllers. Each CRXSL can control multiple Consort RX and/or SL heaters in the same room or zone. The MRX1 controller has a large touchscreen LCD colour display. A 7-day programme with 6 time periods per day can be set separately for each zone and if required, be duplicated across other zones. Temperature adjustments for all zones can also be done simultaneously.

  • Mains powered
  • Central control unit for a maximum of 8 heating zones
  • The MRX1 allows you to change the zone programme individually or as a group
  • Group Control feature allows setting a preferred operating mode and temperature in all heating zones simultaneously
  • Compatible with CRXSL and SLTI controllers, and electronic 7-day timer heaters with RF receiver
  • 4 different operating modes: Boost, Manual, Set back (Economy) & Program
  • 15-minutes Boost feature providing maximum comfort quickly with temperature control
  • Simple to set up and easy to programme
  • Touchscreen control
  • Large backlit LCD colour display for easy reading
  • Stylish and sleek modern design
  • Option to limit min/max temperature
  • Individual zone programme can be changed from MRX1, CRXSL, SLTI or electronic 7-day timer heaters with RF receiver
  • Temperature display of either degrees Celsius or Fahrenheit

Energy Saving Features

  • 6 temperature settings per day
  • 7-day heating programmes per week
  • Half heat when approaching target temperature *
  • Maintains temperature within 0.5°C
  • Set temperature in 0.5 degrees increments
  • Reduced power consumption in standby mode

* Half heat feature does not apply to 0.5kW and 0.8kW heaters.

Dimensions & Specifications


Height (mm) Depth (mm) Width (mm)
90 53 130
