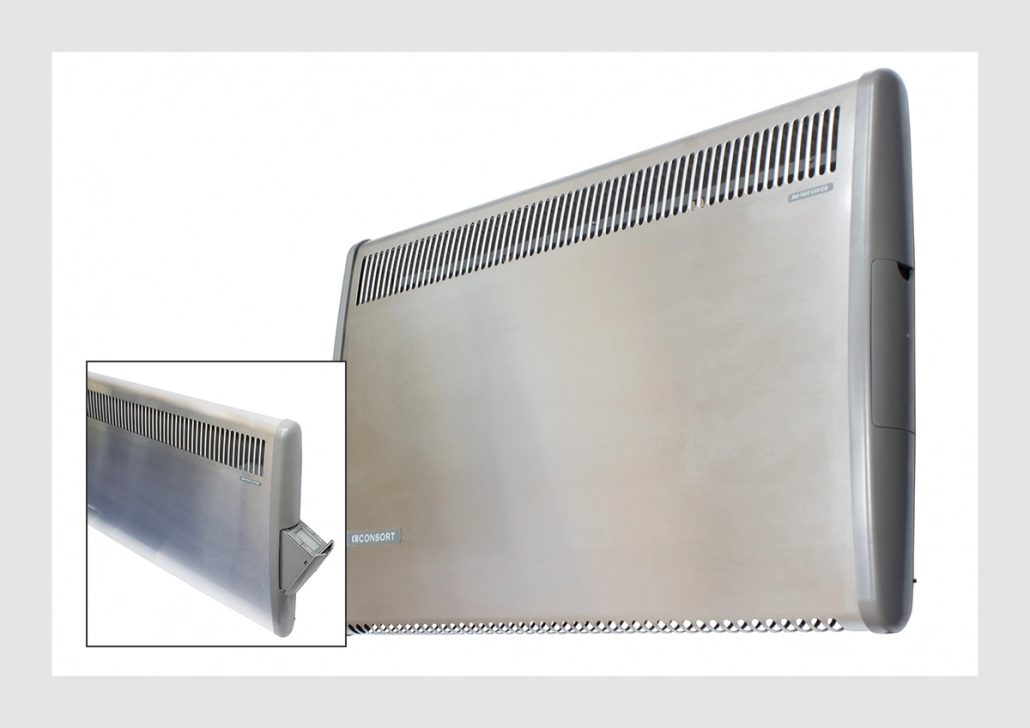

PLE panel heaters with electronic 7-day timer
The digital control panel has an easy-to-read display and four large control buttons with tactile feedback. They are easy to operate and have an electronic lock to prevent control tampering. An optional open window detection feature recognises a temperature drop when a window is opened, this smart function automatically turns the heater off to save energy. As soon as the window closes, the heater promptly resumes its warming function.
The heaters have tough grilles for extra durability. They also come with a snap-on bracket for easy mounting and removal, which is perfect for cleaning and decorating. Ideal for use in hotels, offices, or home spaces like bedrooms, kitchens, bathrooms, and laundries.
Optional PLK1 Locking Device
The PLK1 locking device is compatible with the PLE, PLSTiE, and LSTE heater range. Its purpose is to prevent unauthorised access to the digital control panel and heater settings, thus discouraging any attempts at tampering.
Locking tab
Locking Screw
- 0.5kW, 0.75kW, 1kW, 1.25kW, 1.5kW or 2kW rating
- 7-day timer with electronic thermostat
- 6 heating periods per day
- Cell battery to backup real time clock
- Very quiet operation
- Open window detection
- Copy day function
- Concealed digital controls
- 4 operating modes: Programme, Boost, Setback & Manual
- 15-minutes Boost feature
- Comfort heat setting between 15°C to 35°C
- Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4°C to 15°C
- Automatic safety cut-out
- Can set temperatures in degrees Celsius or Fahrenheit
- Maintains temperature within 0.7 degrees
- Easy-to-read display
- Easy operation
- 4 large control buttons with tactile feedback
- Electronic child lock
- Optional control panel locking kit (PLK1)
- Slimline and clean design
- Splash proof to IP24 for use in bathrooms and other damp areas
- Hinged wall mounting system for easy installation and decorating
- Fitted with 1.1m of supply cable
- Finished in white or stainless steel (stainless steel is only available for 2kW model)
Dimensions & Specifications
Dimensions (mm) & Weight (kg):
| Model No. | kW | Height | Depth | Width | Weight |
| PLE050 | 0.5 | 430 | 93 | 442 | 4.0 |
| PLE075 | 0.75 | 430 | 93 | 442 | 4.0 |
| PLE100 | 1 | 430 | 93 | 614 | 5.0 |
| PLE125 | 1.25 | 430 | 93 | 720 | 6.0 |
| PLE150 | 1.5 | 430 | 93 | 720 | 6.0 |
| PLE200(SS) | 2 | 430 | 93 | 852 | 6.5 |
Please note: (SS) denotes Stainless Steel model.
