Quartzzone Halogen Radiant Heaters
These heaters utilise the high-energy, short-wave output of quartz halogen lamps to provide instantaneous, cost-effective heat in large areas where it is not practical or economical to raise the overall temperature.
Short-wave high-intensity radiant heat, like sunlight, provides warmth you can feel the moment the heaters are switched on. This minimises pre-heating time and running costs. Quartzzone heaters feature highly efficient, long-lasting anodised aluminium reflectors that direct a focused beam of heat on to a specific area.
- 1.5kW, 2kW, 3kW or 4.5kW models
- 4.5kW model is suitable for single or three phase supply
- Instant heat
- Ideal for high level use
- Fitted guard included
- Suitable for wall or ceiling mounting
- Angular and directional fixing bracket included
- Optional Softstart Control available – QSC3 or QSC6
- Gold lamps are available on request
- An optional humidity resistant lamp is available for use in damp buildings
- Finished in dove white
Dimensions & Specifications
Dimensions (mm) & Weight (kg):
| Model No. | kW | Height | Depth | Width | Weight |

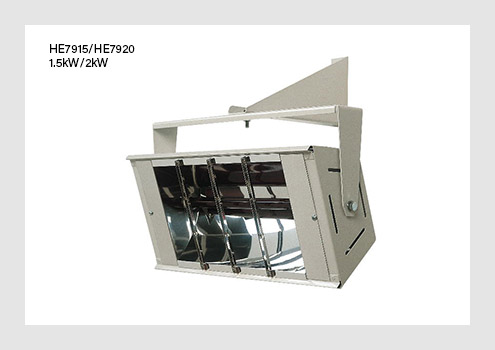

| HE7915 | 1.5 | 230 | 120 | 450 | 3.1 |
| HE7920 | 2 | 230 | 120 | 450 | 3.1 |

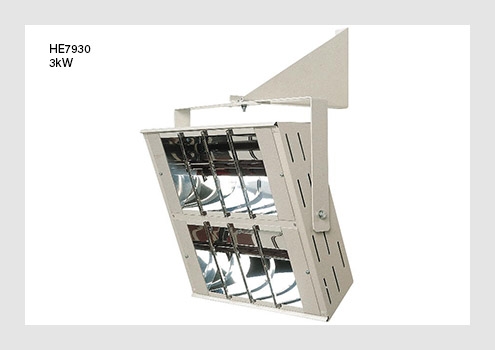

| HE7930 | 3 | 435 | 120 | 450 | 5.9 |

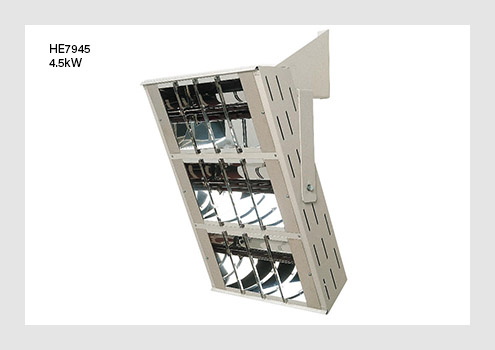

| HE7945 | 4.5 | 650 | 120 | 450 | 7.6 |
| Model No | No. of Lamps |
Recommended Mounting Height: Wall Mount (m) |
Recommended Mounting Height: Ceiling Mount (m) |
||||||||
| HE7915 | 1 | 2.5 | 3.0 | ||||||||
| HE7920 | 1 | 2.7 | 3.2 | ||||||||
| HE7930 | 2 | 3.0 | 3.6 | ||||||||
| HE7945 | 3 | 3.3 | 4.1 | ||||||||
