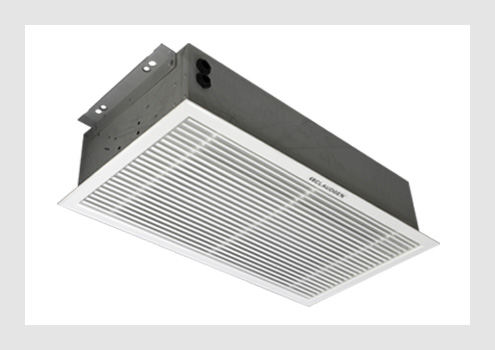

RX Recessed Air Curtains – Screenzone 3kW, 4.5kW & 6kW
Designed to fit above a doorway in a suspended ceiling, these air curtains provide a discreet welcoming curtain of warmth for doorways in shops, hotels, offices and commercial premises.
RAC0603RX, RAC0604RX and RAC1006RX
- 3kW, 4.5kW or 6kW rating
- Single phase
- Will fit a recess as shallow as 210mm (155mm unit depth plus 55mm free air)
- Wireless controlled by a separately purchased advanced single zone controller
- Compatible with CRXSL, HRXSL and LC controllers
- All controllers can operate multiple RX heaters
- Fan only setting for air circulation
- Automatic safety cut-out for thermal overload protection
- Supplied with white grille
RAC1306RX
- 6kW rating
- Single or 3 phase
- Will fit a recess as shallow as 230mm (175mm unit depth plus 55mm free air)
- Wireless controlled by a separately purchased advanced single zone controller
- Compatible with CRXSL, HRXSL and LC controllers
- All controllers can operate multiple RX heaters
- Fan only setting for air circulation
- Automatic safety cut-out for thermal overload protection
- Supplied with white grille
Safety monitoring feature: The heater’s light will flash to indicate the nature of the fault.
Dimensions & Specifications
| Rating (kW) | Max. Mounting Height (m) | Weight (kg) | dBA | Model No | ||
| 3 | 2.8 | 9.5 | 55 | RAC0603RX | ||
| 4.5 | 2.8 | 9.5 | 55 | RAC0604RX | ||
| 6 | 2.8 | 13.5 | 57 | RAC1006RX | ||
| 6 | 2.8 | 20 | 60 | RAC1306RX | ||
Note: dBA readings are taken at 3 meters from the heater in a free field environment.
Dimensions:
| Model No. | Depth (mm) | Width (mm) | Length (mm) |
| RAC0603RX/RAC0604RX | 155 | 339 | 634 |
| RAC1006RX | 155 | 339 | 985 |
| RAC1306RX | 175 | 339 | 1350 |
