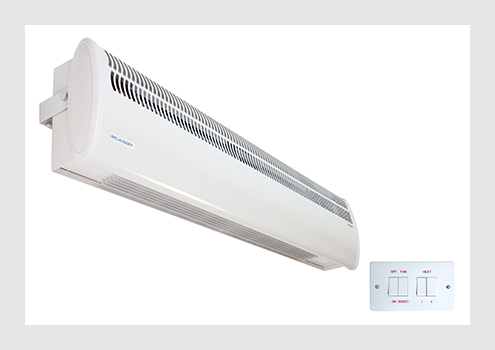

Screenzone Tall Double Door Air Curtains 6kW & 9kW
The tall double door air curtains provide a welcoming curtain of warmth for tall, double width doorways in shops, hotels, offices and other commercial premises.
- 6kW or 9kW rating
- Single or 3 phase
- Wall mounting bracket supplied for ease of installation and angular adjustment
- Suspended, wall or trunking mounted
- Supplied with remote switch
- 3 heat settings and 2 fan speeds
- Fan only setting for air circulation
- Automatic safety cut-out
- Compatible with Building Management System (BMS)
- Finished in white
Safety monitoring feature: The heater’s light will flash to indicate the nature of the fault.
Alternative range: Screenzone Double Door Air Curtains | Screenzone Extra Tall/Wide Door Air Curtains
Dimensions & Specifications
| Maximum Mounting Height (m) |
Weight (kg) | dBA | Model No | |
| 6kW | 2.3 | 10.3 | 55 | HE8326 |
| 9kW | 2.3 | 10.3 | 55 | HE7433 |
Note: dBA readings are taken at 3 meters from the heater in a free field environment.
Dimensions:
| Height (mm) | Depth (mm) | Width (mm) |
| 210 | 115 | 1040 |
Note: 200mm clearance from ceiling required.
