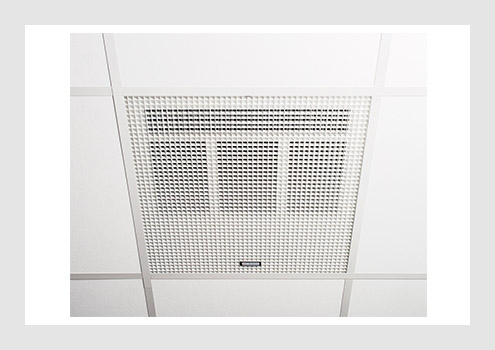

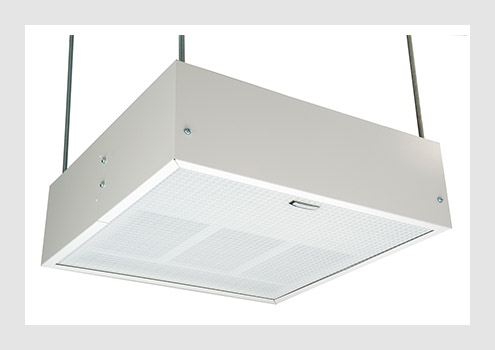

Surface ceiling fan heaters are suitable for supermarket and showroom areas or where heat is required locally. They are designed to be suspended via its integral anchorage points and with a completely enclosed housing ensuring ease of installation. Recessed ceiling heaters are designed for discreet positioning in a suspended 600mm standard ceiling panel. They are ideal to heat areas where wall and floor space is at a premium such as shops and offices.
RX Ceiling Fan Heaters
- 3kW, 4.5kW or 6kW rating
- Compatible with advanced single zone controllers*
- Fan only setting for air circulation
- Wider operation range
- Quiet operation
- Sealed heater box for improved energy efficiency
- Will fit shallow 210mm recess
- LED indicator light
SL Ceiling Fan Heaters
- Available in 3kW only
- Compatible with any Consort wireless controller
- Quiet operation
- Sealed heater box for improved energy efficiency
- Will fit shallow 210mm recess
- LED indicator light
* Advanced single zone controllers: CRXSL, CRXSLWIFI, HRXSL and LC wireless controllers
All wireless controllers are to be purchased separately.
Safety monitoring feature for RX & SL ceiling fan heaters. The heater’s light will flash to indicate the nature of the fault.
Dimensions & Specifications
Dimensions (mm) and weight (kg):
| Model No. | Type | Rating (kW) | Depth | Width | Length | Weight | dBA | Optimum Ceiling Height (m) |
| HE7230RX | Recessed | 3 | 175 | 595 | 595 | 7.5 | 46 | 3.0 |
| HE7245RX | Recessed | 4.5 | 175 | 595 | 595 | 7.5 | 47 | 3.3 |
| HE7260RX | Recessed | 6 | 175 | 595 | 595 | 10.5 | 48 | 3.6 |
| HE7237RX | Surface | 3 | 188 | 595 | 595 | 13.5 | 46 | 3.0 |
| HE7247RX | Surface | 4.5 | 188 | 595 | 595 | 13.5 | 47 | 3.3 |
| HE7267RX | Surface | 6 | 188 | 595 | 595 | 16.5 | 48 | 3.6 |
Dimensions (mm) and weight (kg):
| Model No. | Type | Rating (kW) | Depth | Width | Length | Weight | dBA | Optimum Ceiling Height (m) |
| HE7230SL | Recessed | 3 | 175 | 595 | 595 | 7.5 | 46 | 3.0 |
| HE7237SL | Surface | 3 | 188 | 595 | 595 | 13.5 | 46 | 3.0 |
